PC, PET KEYPADS,BESTRO TRANSFER PRINTING BONDING, SHADOWLESS ADHESIVE T3050A

Elite-T3050A is one-component, UV light curing, acrylate adhesive, which is applied to touch screen instead of OCA tape. It has good properties of good adhesion, excellentlight transmittance, shock resistance and goodweather resistance.

Properties:

Excellent adhesion to glass and PET substrates.
The adhesive layer has good properties of excellentlight transmittance, shock resistance and excellent stability.
Excellentgoodweather resistance.

PC, PET KEYPADS,BESTRO TRANSFER PRINTING BONDING, SHADOWLESS ADHESIVE T3050A

Inquire Now

Technical Data

Model:T3050A

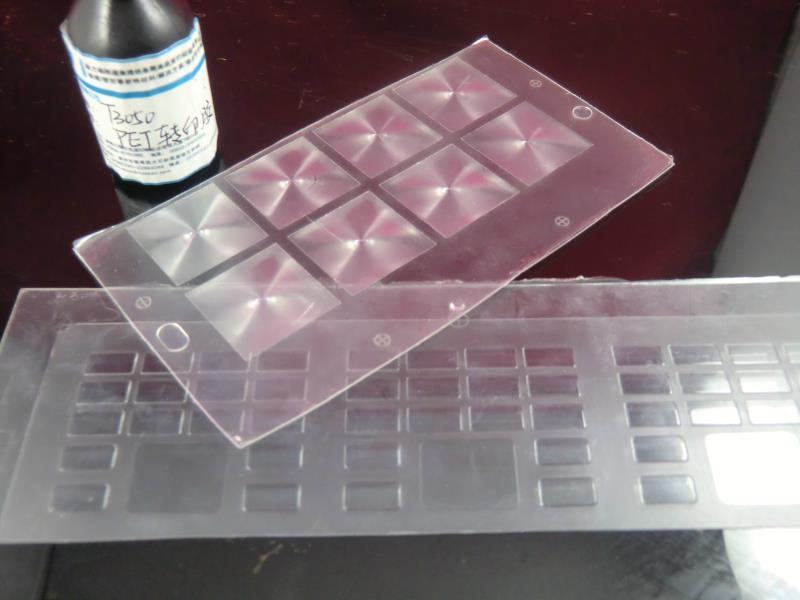

Bonded material:The sheet buttons and bestrow transfer printingof PC and PET
Viscosity(CPS):500-1600cps
Tensile strength(n/mm2):
Primary fixation time(s):>5s

Temperature range(℃):-40~120
Appearance:Colorless transparency
Shore hardness(D):30D
Application:touchscreen devices and plastic shell of mobile phones

Application case

Product Data:

Adhesive property
Appearance	Colorless, transparent fluid
Viscosity [mPa.s]:	1000-1600 mPa.s
(measured by rotating viscometer at 25℃)
Solvent content [%]:	0
The curing condition:
The following figure was measured with 120mW/cm2 electrodeless mercury lamp as light source.	120 mw/cm2
Entire curingenergy (mj/cm2):	2000 mj/cm2

The product was applied to thermal transfer technology:
