PVC, POLYTETRAFLUOROETYLENE METAL BONDING, SHADOWLESS ADHESIVE T3042B
Product Description
Elite-T3042B is one-component, UV light curing, acrylate adhesive, which is applied to seal and fix electronic ribbon cable and electronic components. It has good properties of good adhesion, excellent toughness, good shock resistance and great weather resistance. The product has a good thixotropy, helping the process of construction.
Properties:
- Excellent adhesion to universal substrates.
- Rapid deep-curing rate and less skin-over time.
- The adhesive layer has good properties of shock resistance and excellent stability.
- The product has a good thixotropy, which is easy to use.
- It has good properties of excellentgoodweather resistance and bending strength.
Product Data：
|
Appearance |
Light yellow viscous body |
|
Viscosity[mPa.s]:(measured by rotating viscometer at 25℃ ) |
41000-46000 mPa.s |
|
Curing condition |
120 |
|
The figure was measured with 120mW/cm2 light source： |
|
|
Skin-over Time(s) |
36 |
|
Deep curing time (1mm thick) |
6 |
|
Entire curing energy |
1500 mj/cm2 |
|
physical and chemical properties: |
|
|
with electrodeless mercury lamp accumulating energy: |
1000 |
|
mj/cm2 The following figure was measured after curing,： |
Shore hardness(D):60 |
|
The electrical properties: |
|
|
bonding properties |
|
|
The following figure was measured after curing, with electrodeless mercury lamp accumulating energy light source |
800 |
|
mj/cm2 as The following figure was measured after curing： |
|
|
Bonding Substrate Bonding strength(NM) |
AL/METAL 8.6 |
|
|
PC/METAL 8.7 |
|
Weather resistance test: |
|
|
with electrodeless mercury lamp accumulating energy as light source |
800 |
| mj/cm2 The following figure was measured after curing： |
|
|
AL/METAL 125℃ 10 day 80 |
|
|
AL/METAL 65 ℃ 90%RH（72h） |
50 |
|
AL/METAL soaked in engine oil for 10 days |
|

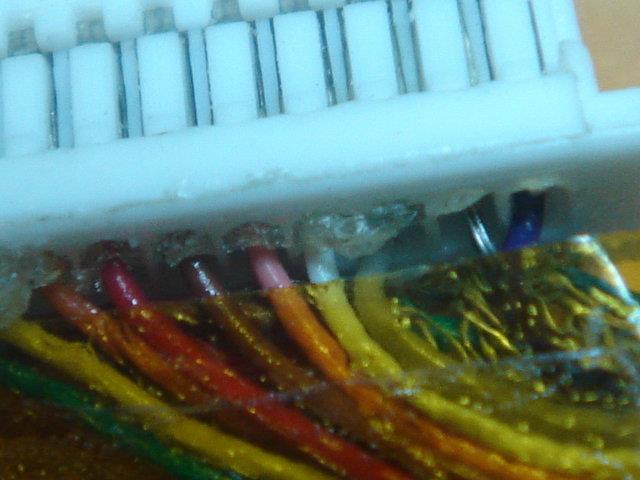

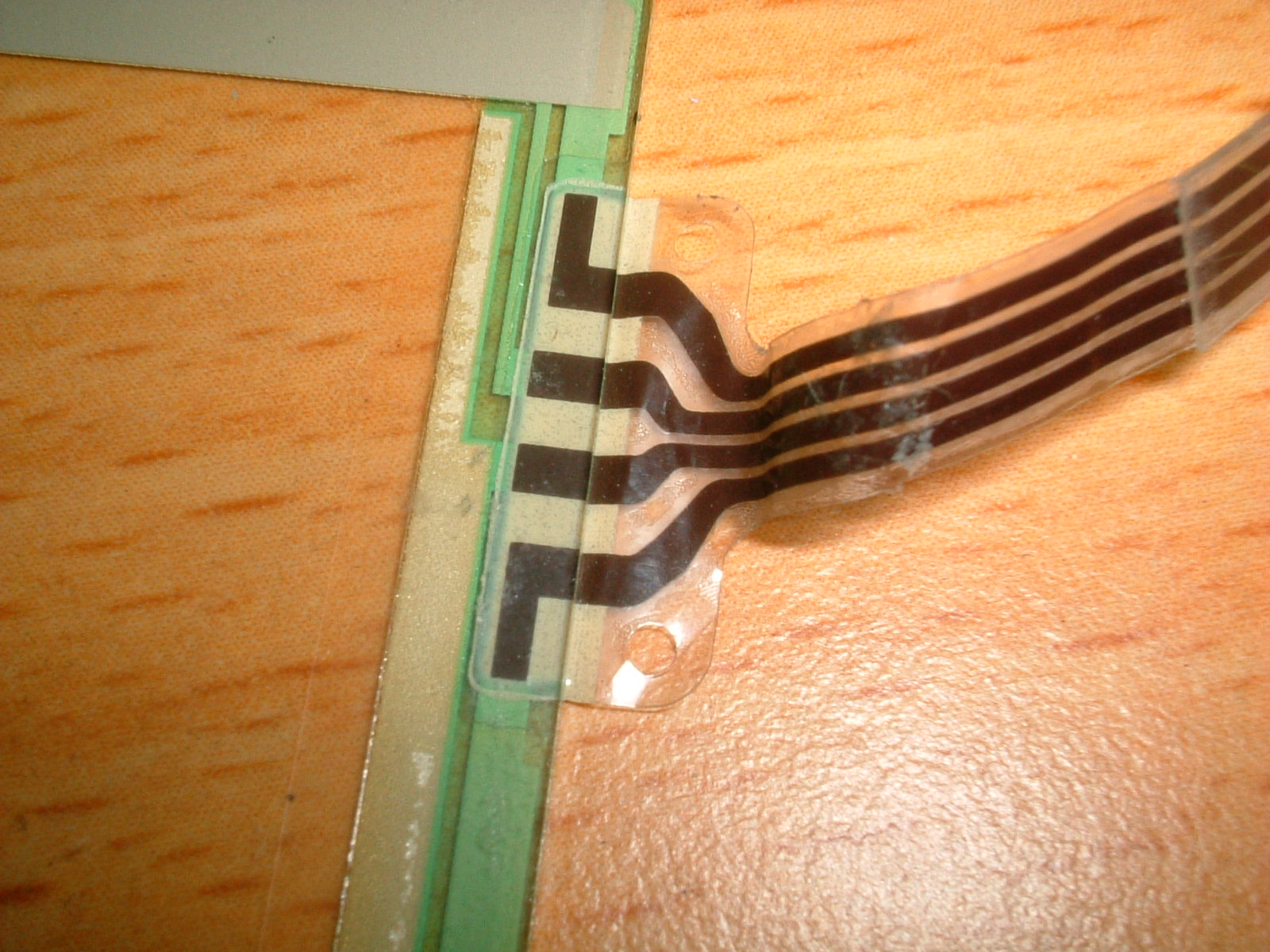

The product was applied to ribbon cable：
